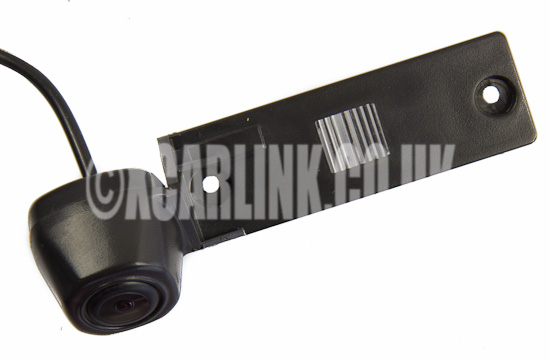

VW Passat Golf Reverse Rear View Camera

This is a high quality and waterproof rear view camera, specifically designed to fit the standard license plate light on a VW.

Specification:

• Image sensors: 1/3" color sharp CMOS
• TV System: NTSC

• Minimum illumination. <0.5
• AGC: Auto
• BLC: Auto
• White Balance: Auto
• Video Color: Colorful
• Waterproof Class:     ip 66
• Effective Pixels : 580X540
• Resolution : 420TV lines
• Video Output: 1.0Vp-p,75Ω
• Electronic Shutter:  1/60(NTSC)-1/10000S
• S/N ratio: Better Than 48db
• Lens Angle: 170°
• Operation Temperature: -20°C+80°C RH95%
• Storage Temperature: -30°C+80°C
• Working Power (DCV): 12V
• Current consumption: 90mA Max

Compatibility:

Caddy 2004-2008
Passat 3B 2001-2002
Passat 3c 2003-2005
Golf Plus 2005-2007
Jetta Touran 2003-2010
Multivan T5  2003-2010
T5 Transporter 2003-2010
Skoda Superb   2002-2008

Installation:

• Take out your stock license plate light at the back of your car.
• Fix the camera to where the stock license plate light was.
• Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power
• Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative
• Connect the video cable to the monitor/rear camera input on the multimedia interface/monitor.

Package includes:

• VW rear view camera
• 5m video cable extension cord
• Power cable
