Vauxhall/Opel Corsa IntelliLink Multimedia Rear Camera Interface 2014>

Connect a rear camera or watch any video source on your factory fitted  Vauxhall/Opel Corsa Screen.

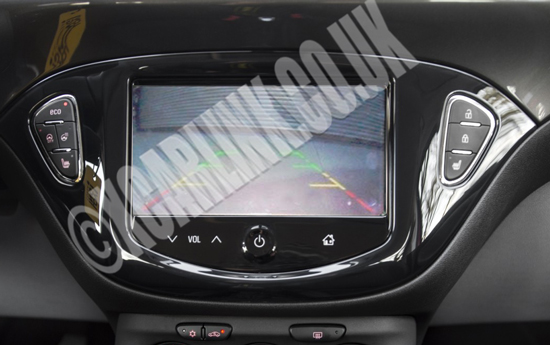

The new Xcarlink Vauxhall/Opel Corsa Multimedia interface allows you to integrate a rear view camera or external video source to the original factory fitted screen. It providers two video inputs for connecting any video source such as Smartphone mirroring, DVD, Digital TV etc and also provides a dedicated rear camera input which will automatically switch to the rear camera when the reverse gear is engaged.

The interface also provides the option to add a fully integrated SatNav system which is controlled via the car's original touch screen.


Features

• Watch any video source on your original factory fitted screen.
• Two video inputs
• Rear view camera input - automatic switching when in reverse gear
• On screen setup menu for making adjustments and setting various options.
• Optional Fully integrated SatNav
• Video in motion - for connected video sources
• Switch between OEM display and AV inputs using the original vehicle controls.
• RCA video output for rear seat entertainment

The kit includes the following:

• Multimedia Main interface
• Power and LVDS connection to the monitor
• Plug and Play Power Harness
• Rear view camera connection
• AV cables
• Toggle switch
• User Manual

Installation involves removing the factory screen and connecting the interface via a ribbon cable.  Power and data is provided via the included Plug and Play harness.

This interface is designed for video. Audio is provided by connecting the interface directly to your Aux Input in the vehicle.

Compatibility:

Compatible with the Vauxhall/Opel Corsa from 2014 onwards

Specifications:

• BATT/ACC range    : 7V~25V
• Power                          : 0.3A @12V
• Video input/output: 0.7V~1V
• Audio input                 : 0~5Vpp
• Audio output              : 4Vpp max.
• Video input formats: SECAM /NTSC

Options:

Rear View Camera

High quality rear view camera which is designed to fit to the car's original number plate light.

Smartphone Mirroring

The wireless mirroring interface allows you to connect and display your smartphone on your original factory fitted screen.   Simply connect it to one of the video inputs on any of our multimedia interfaces and then link it to your phone via Wifi and a mirror image of your phone display will also appear on your original car screen.

Access all of your music, video's, web browser, messages etc,  as well as all your favorite apps such as YouTube , Twitter, Facebook, Whatsapp without connecting any wires.

It can also be used for Satnav such as Google Maps,  TomTom, google maps etc

High quality product not to be compared with other cheaper mirroring products on the market.

DVB-T Digital TV Tuner (including antennas)

Watch digital TV anywhere you go in your car. This high quality digital tuner is supplied with dual amplified window mount antennas for superior reception, especially when on the move. . There is also a USB input for playback of audio and video files.

SatNav (GPS) Module with Licenced Maps

Fully integrated SatNav system which is fully controllable via the original touch screen.

Features include

• Clear bright graphics of all maps and directions clearly displayed
• Fully licensed updatable mapping software
• Speed Limit Sign On Map - Speed limit sign on Map with adjustable audio warning and comprehensive settings for your safety
• Speed Camera Warnings - Pre-installed database of fixed speed camera positions will provide you with an audio-visual warnings to protect your walled and your driving license
• Lane Assistant - Lane Assistant tells you which lane to take
• Points of Interest - Points of Interest in comprehensive categories for easier search

3/4 DIN DVD Player with USB/SD

High quality car DVD player with USB/SD for playback of video and audio files


Money Back Guarantee

We have extensively tested this product and confident that it will work with all factory fitted systems in the car models listed below. You do not need have a factory installed TV tuner or have anything enabled by a dealer. Nor do you have to have to have any optional extras installed when the car was ordered.

If for any reason you are not completely satisfied or have any issues with compatibility you can return it to us for a refund.

They system is interned for passenger use only. We cannot accept any liability of any material or personal damages caused by the installation or use of this product. Therefore installation of this product will be performed at the user full responsibility
