VAG MIB2 Multimedia Rear Camera Interface VW Seat Skoda

MIB II Multimedia Rear camera Interface

The Xcarlink Multimedia interface provides rear camera integration to and allows external video sources to be integration to the factory VW/Seat/Skoda System with the MIB-II System (without infotainment unit in the glove box)

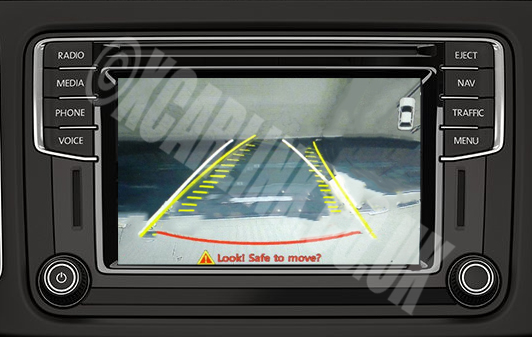

The interface will allow the vehicle to automatically switches to display the camera image on  also displays dynamic parking guidelines ( showing the predicted path that the vehicle will take based on the position of the steering wheel).   It will also display the original parking sensor graphics embedded into the camera image.  .

Features:

• Watch any video source on your MIBII-STD Screen
• 1 x Composite Video Input / Front Camera input
• Optional AV extension provides 2 x Composite Video inputs and Video output for rear screen entertainment
• Dedicated Rear view camera input - automatic switching when in reverse gear.  (rear view camera option can be switched off if not installing a rear camera or if the vehicle is equipped with an OEM camera)
• Dynamic Parking guidelines which move in accordance to the position of the steering wheel
• Retains original Parking sensors image embedded within the rear camera display.
• Optional HDMI input for digital smartphone mirroring (Via HDMI cable) or can be used in conjunction with our wireless smartphone mirroring (Via HDMI or composite connection)

• Customizable on screen menu system for screen adjustment, parking guidelines
• Switch between original display and video inputs via the original steering wheel controls
• Switch between original display and video inputs using the original steering wheel buttons.
• Video in Motion - for connected video sources, NO Programming Required!

Included with the kit:

•      Xcarlink Multimedia video interface

•      Power/CAN Connection cables

•      LVDS Ribbon Connection

•      Video input and Camera input cables

•      Remote control to accesss the interface's initial on screen setup menu.

•      Installation Manual

Installation requires making a connection inside the MIB 2 display, detailed installation steps are included within the manual.

Audio:

This interface is designed for video only. For audio, you will need to connect the video source directly to your AUX input.

Compatibility:

Compatible with the new VW, Seat, Skoda  systems from 2016 onwards with the MIB2 head unit with one or two SD card slots built in which includes but is not limited to the following:
