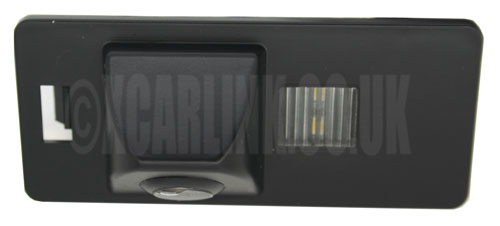

This is a high quality and waterproof rear view camera designed to fit the Audi A4, Audi A5, Audi A5 and Audi TT. Our reverse cameras are equipped with a wide angled lens making parking safe and easy by giving a clear view of the road behind. Specially manufactured to replace the existing number plate light allowing for easy installation without any drilling.

The camera can be fitted to any aftermarket head unit with a video input or to your existing factory fitted screen via our multimedia video interface:

Audi Multimedia Video Interface new Audi A4 A5 Q5 (B8) 2008>

Specifications:

• Size: 7cm x 3.2cm
• Sensor:1/3"color CMOS, OV7950
• Effective pixels:656X492
• Lens angle:170 degrees
• Resolution: 420 TV Lines
• Shutter speed: 1/60s-20us
• Waterproof: IP67
• Minimum illumination: 0.2Lux
• Voltage:12V
• Operating temperature: -40 to +80 RH95% Max

Installation:

• Take out your stock license plate light at the back of your car.
• Fix the camera to where the stock license plate light was.
• Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power
• Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative
• Connect the video cable to the monitor/rear camera input on the Multimedia interface.

Package includes:

• 1 x Audi A4 A5 TT rear view camera
• 1 x 5m video cable extension cord
• 1 x power cable
