Audi 2G MMI Multimedia Video Interface A6 A8 Q7


SKU SKU2391
Price: £269.99
inc. VAT 20.00 % (£45.00)

Connect any video source to your Audi 2G MMI navigation screen

Our multimedia interface is a revolutionary product that allows you to integrate an external video source to your cars factory fitted MMI screen. Once installed, it gives you the ability to connect an in car DVD player, games console, iPod Video, Digital TV Tuner or Rear View Camera to keep your passengers entertained. The multimedia interface has a total of two video inputs, rear view camera input and RGB connection to add Satellite Navigation if you do not have the factory fitted option.

The interface does not replace your original system - it offers perfect integration to maintain your OEM appearance.

Features

  • Watch any video source on your original factory fitted screen.
  • Two video inputs
  • Rear view camera input - automatic switching when in reverse gear

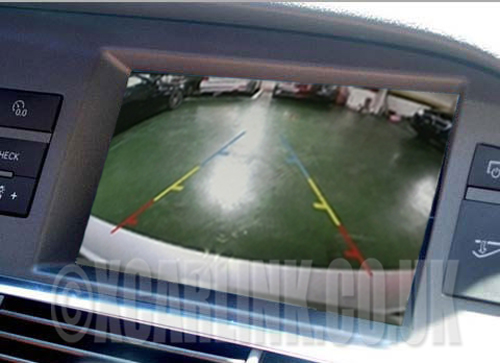

  • Optional Parking Guidelines displayed on screen with rear view camera
  • RGB input for aftermarket Touch Screen Navigation.
  • Video in Motion - for connected video sources
  • Switch between Audi display and AV input using MMI controls or toggle switch

The kit includes the following:

  • Audi 2G MMI Multimedia Video Interface
  • MMI monitor cable
  • Wiring loom
  • AV cables and toggle switch
  • Remote control for setup menu
  • Installation manual

Installation

Installation involves locating the MMI control box, which is located behind the glove box in the Audi A6, A8 and Q7. Disconnect the monitor cable from the MMI control box and connect it to the LVDS IN connection on the interface. Connect the LVDS OUT cable from the interface to the MMI control box. Connect the wiring loom to 12v, 12v ACC, Grounds and to the MMI control box (optional).

Press and hold the “NAV” button to switch from the Audi display to RGB > AV1 > AV2 or alternatively use the toggle switch.

Connect a 12v reverse supply if fitting a rear view camera. The interface will then switch to the rear view camera automatically when in reverse gear.

Optional Extras

Audio

This interface is designed for video only.

Audio is provided by connecting the video source to the AUX input (if available) or an FM transmitter.


Alternatively, audio can be connected to the MMI system using our MMI MOST FIBRE OPTIC AUDIO INPUT which can be ordered with this product at a discounted price using the drop down menu above. Please
click here for full details of the MOST Audio interface.

GPS SatNav Option:


An optional GPS Navigation Box is available to purchase with this product which is supplied with a transparent touch screen panel which fits over the existing factory screen and provides a fully integrated GPS Satnav system to vehicles that are not equipped with GPS as standard.  The GPS box connects directly to the RGB input on the Multimedia interface and can be supplied Touch panels to fit a factory fitted Audi 6" or 7" Screen. The system is then fully operated via Touch screen so there is no need need for any remotes or additional equipment to be added.


Compatibility:

Compatible with the 2G MMI High systems in the following models:

Audi A6, Audi A8 and Audi Q7 up to 2009

Also compatible with the Audi A4, Audi A5 and Audi Q5 with the 2G MMI High option.

Not compatible with 2G MMI Basic (red monochrome screen), 3G MMI or the Concert/Symphony radios.

Specification:

  • BATT/ACC range : 7V~25V
  • Power : 0.3A @12V
  • Video input : 0.7V~1V
  • Audio input : 0~5Vpp
  • Video input formats: NTSC
  • CAMERA wire : 0V ~30V, Trigger condition @>3V 3v >

Money Back Guarantee:

We have extensively tested this product and confident that it will work with all factory fitted systems in the car models listed below. You do not need have a factory installed TV Tuner or have anything enabled by an Audi dealer. Nor do you have to have to have any optional extras installed when the car was ordered. If for any reason you are not completely satisfied or have any issues with compatibility you can return it to us for a refund.

They system is interned for passenger use only. We cannot accept any liability of any material or personal damages caused by the installation or use of this product. Therefore, installation of this product will be performed at the user full responsibility.
