Honda Multimedia Video Interface 2008-2010 :: VIDEO ON SATNAV SCREEN

Overview

Watch any video source on your Honda Sat Nav system.

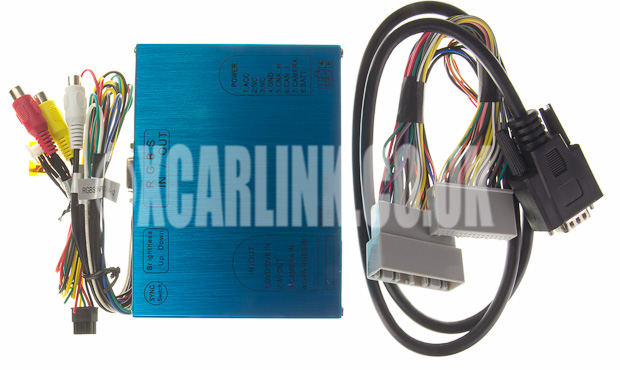

Our Honda multimedia interface is a revolutionary product that allows you to integrate an external video source to your cars factory fitted Honda Navigation Screen. Once connected it gives you the ability to connect an in car DVD player, games console, ipod video, digital TV tuner or rear view camera to keep your passengers entertained.

The Multimedia Interface has one video input, one rear view camera input (which switches automatically when the reverse gear is engaged), video out (for connecting to additional external screens) and RGB connection to add Satellite Navigation if you do not have a factory fitted option.

The interface does not replace your original system - it offers perfect integration to maintain your OEM appearance

Features:

Watch any video source on your original factory fitted screen.
Plug and Play harness included.
Change from original Honda screen to the video input by using the simple toggle switch which can be mounted anywhere on the dashboard.
Frame buffer offers very stable timing to the panel even under poor video signal conditions.
High quality video decoder provides 3-dimensional comb filter, and provides high quality video for RGB and video inputs
Automatic switching to RGB-input if after market navigation is installed.

Installation:

The interface connects behind the navigation DVD in the boot. Simply connect the vehicles original 32 pin pin wiring harness into one end of the plug and play harness provided. Then connect the other end of the plug and play harness into the location where the original 32 pin wiring was. You will then need to connect the 12v power and grounds in addition to your video input.

The Honda Multimedia Interface is a video only interface. If your car does not have an auxiliary input then sound is provided by using an FM modulator or transmitter. Alternatively, the interface can be used in conjunction with our Honda iPod or USB interface as both provide an auxiliary input for sound.

Specification:

BATT/ACC range : 7V~25V
Power : 0.3A @12V
Video input : 0.7V~1V
Video input formats: NTSC
Video output of the AV output connector has the same format as the video input.
NAVI talkover : 0V~30V, trigger condition @>3V 3v >
CAMERA wire : 0V ~30V, Trigger condition @>3V 3v >

Money Back Guarantee

We have extensively tested this product and confident that it will work with all factory fitted systems in the car models listed above. You do not need have a factory installed TV tuner or have anything enabled by a Honda dealer. Nor do you have to have to have any optional extras installed when the car was ordered. If for any reason you are not completely satisfied or have any issues with compatibility you can return it to us for a refund.

They system is interned for passenger use only. We cannot accept any liability of any material or personal damages caused by the installation or use of this product. Therefore Installation of this product will be performed at the user full responsibility
